How to use Business Events in Oracle Workflow


Business Events in Workflow

Following is a simple step by step guide to use Business Events feature of Oracle Workflow in Oracle Applications (E-Business Suite).

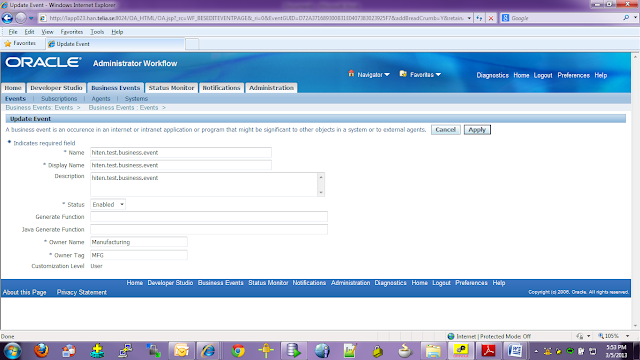

Step 1) Navigate to the workflow administrator responsibility and choose the Business Events function. Define a Business Event.Owner name should be application name and owner tag should be the application short name.


Step 2) Define a Subscription for the Business Event defined in Step 1

  1.  System => should be the name of the database where the workflow is installed
  2. Phase => Keep the value for phase as 99 if you want the workflow to run immediately.
  3. Event Filter => Name of the event




Step 3) In workflow builder create a workflow item type and define 3 attributes as follows







Step 4) Create a event as follows



Step 5) Create a process as follows

Note: The starting node should be the Event that we have created



Associate the attributes that were created with the Event in the process.



Step 6) Test the event



Click “Raise in PLSQL”.


Now check if the workflow has been triggered in the Status Monitor
